8x8 Viber, SMS & AI Chatbot

Blu Coffee's outbound marketing and customer-engagement runs on 8x8 CPaaS. The integration covers three things:

1. Viber marketing campaigns — the primary marketing channel. Send a single message to a curated audience, with delivery tracked per recipient.
2. An AI (ChatGPT) chatbot — answers public Viber inquiries grounded in a curated FAQ knowledge base.
3. Intent-driven CRM lead capture — when the AI judges that an inbound message shows buying intent, it auto-creates a CRM lead and pings every member of the sales group via Viber to claim it.

The features live in two cooperating Odoo modules:

Module	What it provides
common/blu_8x8/ (the 8x8 app)	Viber campaigns, ChatGPT integration, AI training data, webhook receiver, settings page
bc17/blu_8x8/ (sub-package of bc17)	SMS sender-account selector on the standard Odoo SMS composer

This page documents the marketing-campaign workflow end to end, then the AI chatbot and the intent→lead handoff.

---

The 8x8 app

The 8x8 app appears in the apps menu for users in the Viber Messaging Administrators group. It exposes two top-level sections:

Menu	What	Group required
Viber → Campaigns	The campaign list + form (this is where marketing work happens)	Viber Messaging Administrators
ChatGPT → Training Data Model	The Prompt/Completion pairs that feed the AI chatbot	Viber Messaging Administrators

The Can handle CRM from Viber and AI? group is separate — its members receive the "claim this lead" Viber buttons whenever the AI detects buying intent.

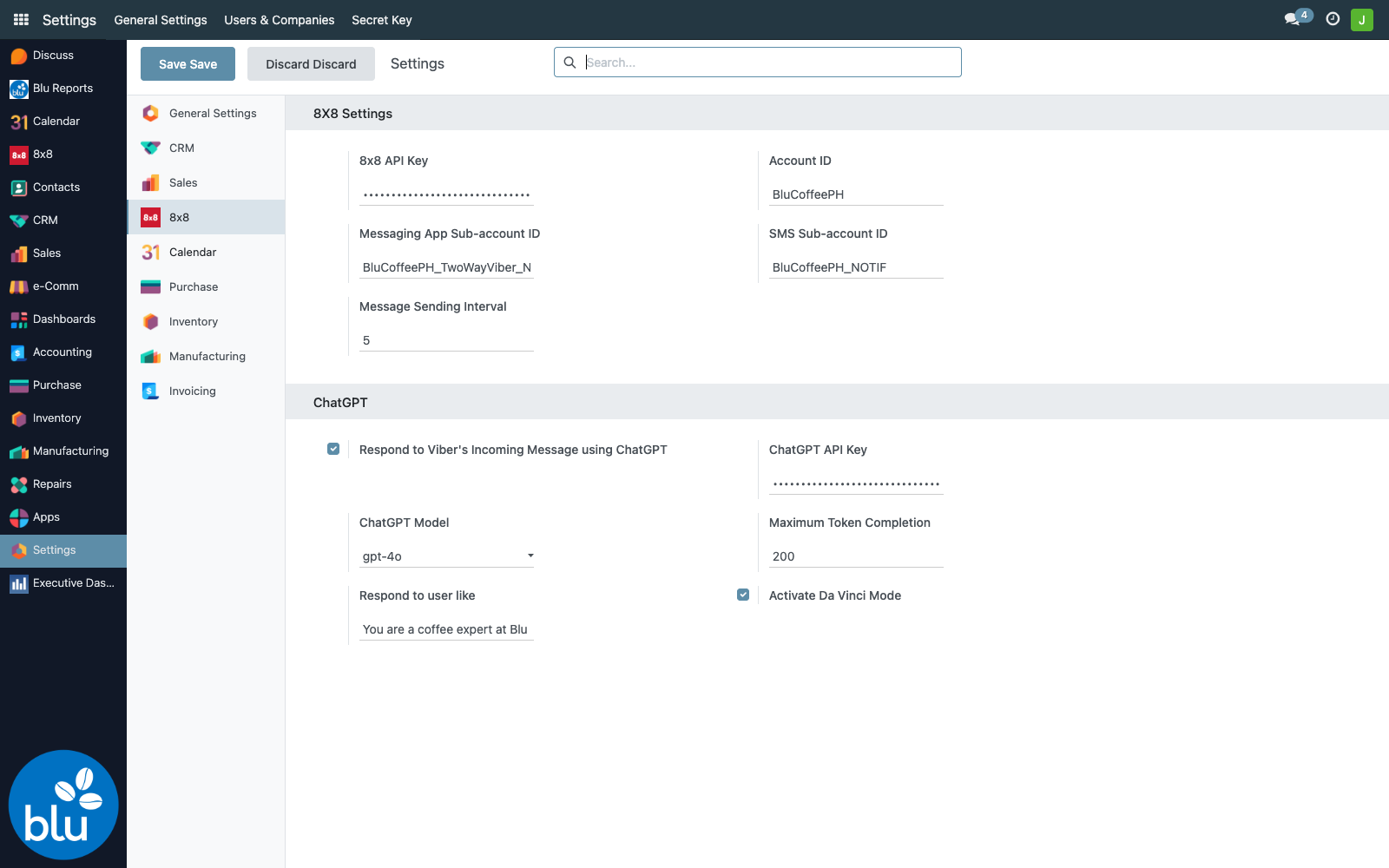

Configuration — 8x8 + ChatGPT settings

All keys, sub-accounts, and the ChatGPT toggle live under Settings → 8x8 (general settings, "8x8" tab on the left).

Setting	Purpose
8x8 API Key	Bearer token used to authenticate every outbound call to 8x8 (Viber + SMS) and every webhook callback. Stored in ir.config_parameter key blu_8x8.blu_8x8_api_key.
Account ID	8x8 account display name (e.g. BluCoffeePH). Informational.
Messaging App Sub-account ID	The Viber sub-account (e.g. BluCoffeePH_TwoWayViber_NOTIF). All Viber API calls hit https://chatapps.8x8.com/api/v1/subaccounts/<this>/messages.
SMS Sub-account ID	The SMS sub-account (e.g. BluCoffeePH_NOTIF).
Message Sending Interval	Seconds between each outbound message in a campaign. Acts as a soft rate limit — 5 (the default) means one Viber every 5 seconds, ~12/minute.
Respond to Viber's Incoming Message using ChatGPT	Master switch for the AI chatbot. When off, inbound messages are stored but not auto-answered.
ChatGPT API Key	OpenAI API key. Stored encrypted; UI shows dots.
ChatGPT Model	The OpenAI model used. Default gpt-4o. Selectable: gpt-4o, gpt-4o-mini, o1, o1-mini, gpt-4-turbo, gpt-4-turbo-preview.
Maximum Token Completion	Cap on AI response length. Default 200.
Respond to user like	System-prompt persona prefix. Default "You are a coffee expert at Blu Coffee Distributors."
Activate Da Vinci Mode	When on, every inbound message also goes through the intent detector — the AI gates each message ("is this showing interest in coffee?") and routes "Yes" messages into the CRM-lead flow.

Two switches are not the same

Respond to Viber's Incoming Message controls whether the AI replies at all. Da Vinci Mode controls whether the AI also creates a CRM lead and pings the sales group on detected intent. You can enable replies without intent detection, but not the other way around (intent detection assumes the chatbot is active).

---

Marketing campaign workflow

The marketing-campaign lifecycle moves a message from idea to delivered Viber blast in five stages:

A campaign moves through four states on its way:

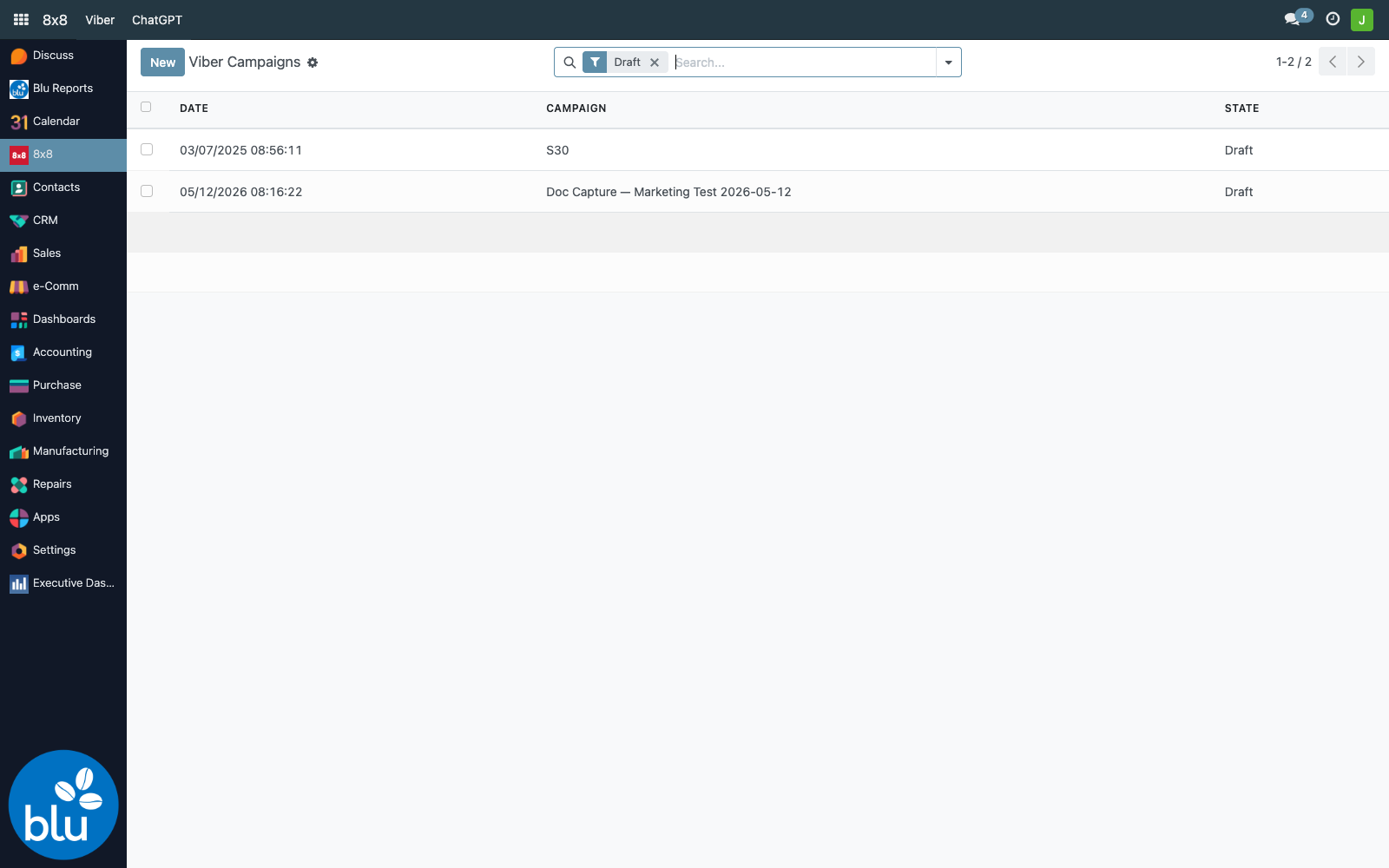

1. Open the campaigns list

8x8 → Viber → Campaigns — the list is filtered to Draft by default so in-progress work is front and centre.

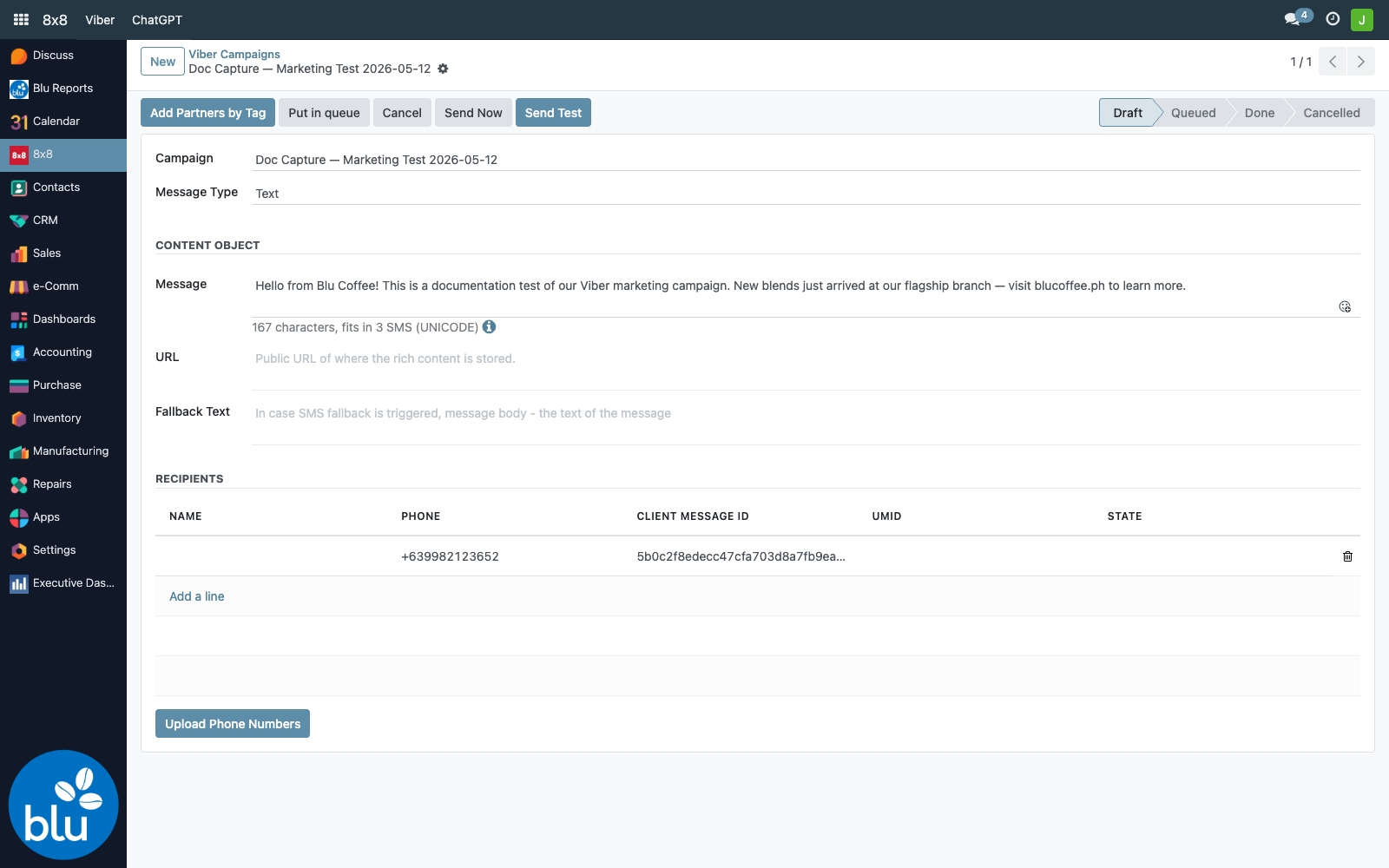

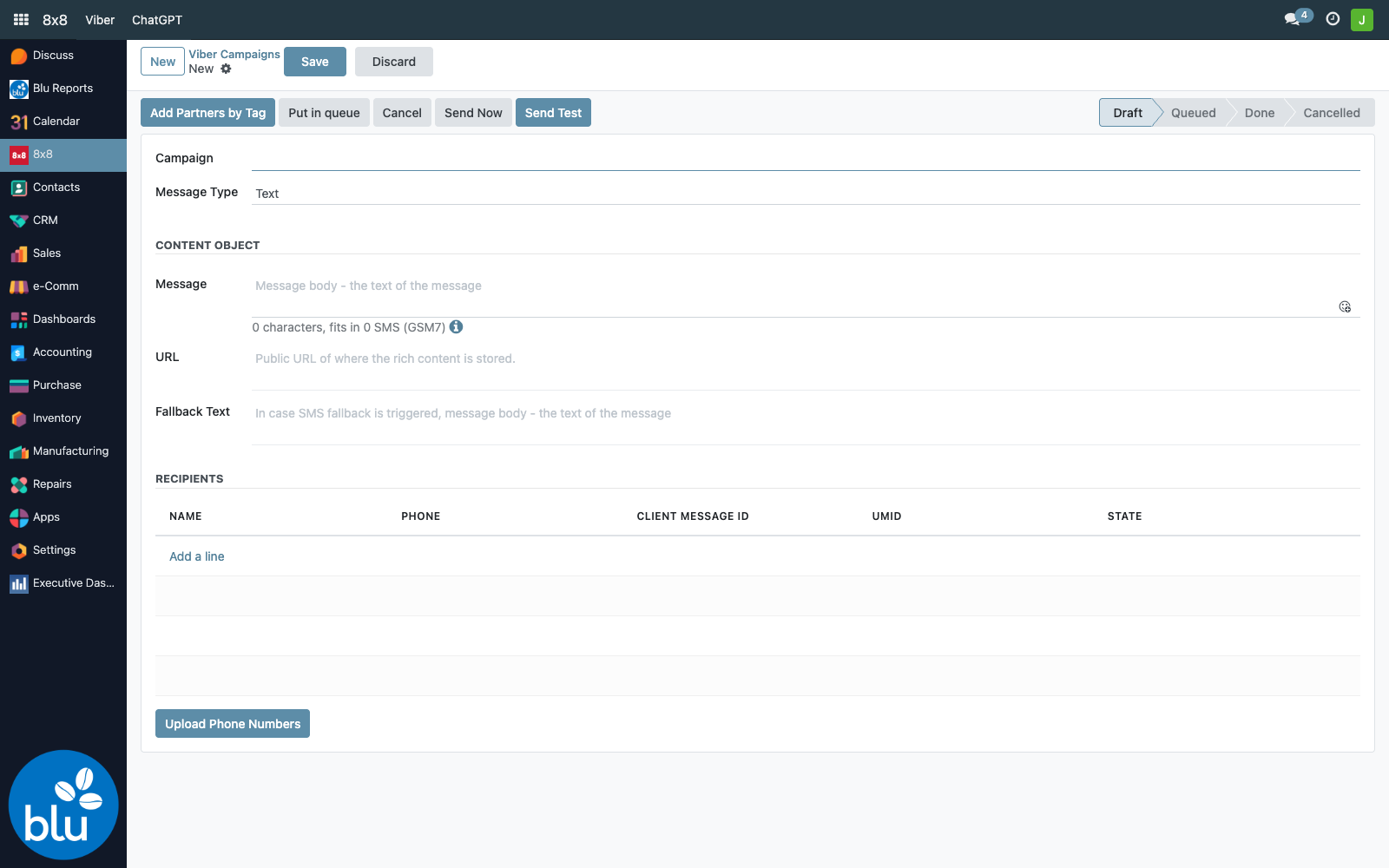

2. Create a campaign

Click New. Fill in the campaign metadata at the top, then the content in the middle.

Field	Notes
Campaign	A human-readable name. Used as the campaign's display label and shows up in cron logs.
Message Type	Text (most common), Image, Audio, Video, File. For non-Text types, URL is required and points at the asset hosted somewhere publicly reachable.
Message	The actual body. Supports SMS-style variable expansion; the character counter shows how it'd be split if Viber fell back to SMS.
URL	Public URL to the media asset (Image/Audio/Video/File).
Fallback Text	Sent when the recipient doesn't have Viber and the message falls back to SMS. Keep this readable on its own — the recipient may never see the rich content.
File details (Video/Audio only)	Thumbnail URL, file size in bytes, duration in seconds. Required by 8x8 for video/audio payloads.

3. Add recipients

There are three ways to add recipients to the Recipients section at the bottom of the form:

• Add a line — pick an existing partner or just type a phone number directly. The composer auto-formats (+639…) and prevents duplicate phones in the same campaign.
• Add Partners by Tag (top of the form) — opens the Partner-Tag selection wizard; everyone with the selected tag is pulled in.
• Upload Phone Numbers (bottom of the form) — paste a list / upload a CSV of numbers (no partner record required).

Each recipient row has four read-only columns the system fills in as the campaign runs:

Column	Filled by
Client Message ID	Generated locally on create — a UUID that 8x8 echoes back so we can correlate webhook events to rows.
UMID	The 8x8-side message ID, returned by the POST response. Populated when 8x8 accepts the message.
State	Updated as 8x8 fires status webhooks: queued → sent → delivered → read (or failed).

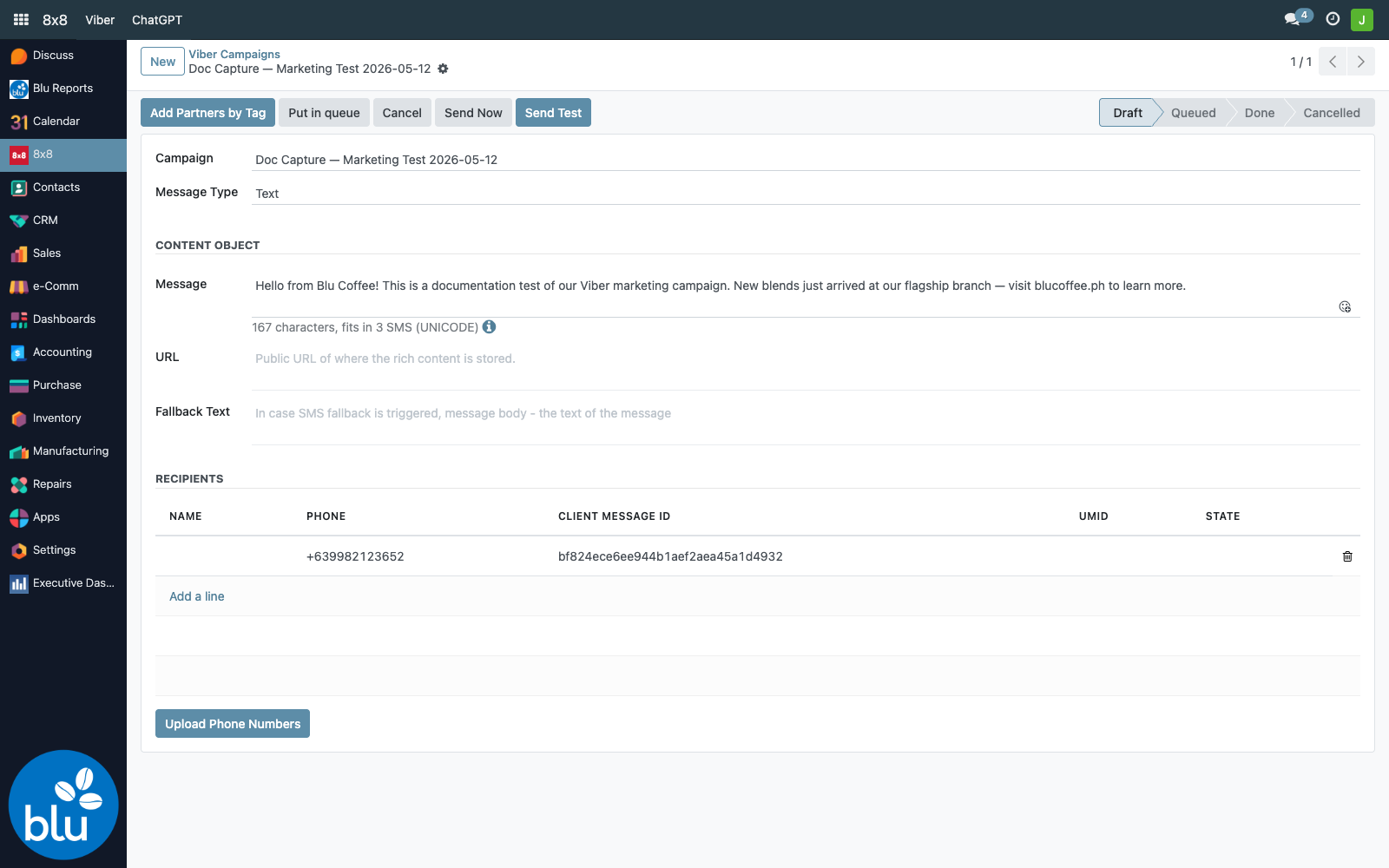

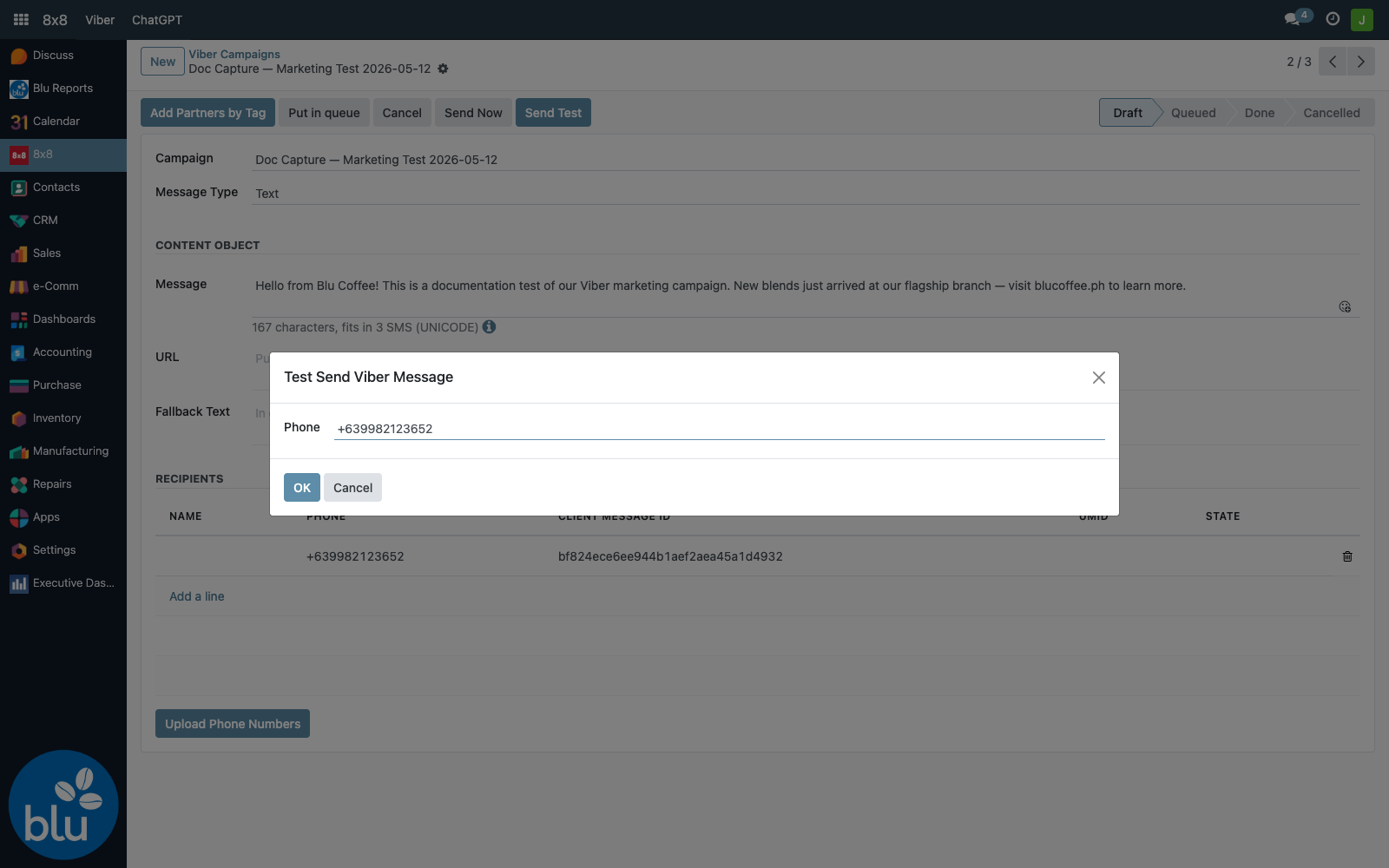

4. Send a test

Before blasting a real audience, click Send Test to fire one Viber to a phone you control. The wizard defaults to your own logged-in user's phone — override if needed.

Click OK. The wizard posts a single payload to the Viber endpoint synchronously — you'll see "Sending Viber Message to +63…" in the server log, followed by 8x8's response containing the umid. Open Viber on the recipient phone to confirm content, formatting, image rendering, and the fallback link.

Test sends are independent of recipients

The test wizard sends to whatever number you type — it does not consume or mark anything in the campaign's recipient list. Run it as many times as you like before kicking off the real send.

5. Send the campaign

Two options on a saved Draft:

• Send Now — fires the messages immediately, one recipient at a time, sleeping for Message Sending Interval seconds between each. The form is locked from edits while it runs.
• Put in queue — flips the state to Queued and returns control immediately. The Send Queued Viber Campaigns cron picks it up on its next run (every 1 minute) and sends the messages in the background. Use this for large lists or when sending should happen overnight.

Either path:

1. Iterates each recipient in partner_ids
2. POSTs a JSON payload to https://chatapps.8x8.com/api/v1/subaccounts/<sub_account>/messages
3. Reads umid + status.state from the 200 response and writes them to the recipient row
4. Commits the row, then sleeps for the configured interval before moving on

6. Track delivery

8x8 calls back into Odoo at POST /viber/status for every state change on every recipient (and for every inbound message). The handler in common/blu_8x8/controllers/controllers.py:

• On outbound_message_status_changed events, finds the matching blu.viber.campaign.partners row by umid and updates its state. If every recipient in the campaign is now in delivered or read, it flips the parent campaign to Done.
• On inbound_message_received events, records the raw event in blu.viber.callback. If Da Vinci Mode is on, it also fires the AI intent detector (see below).

A separate cron — Checking Queued Viber Messages' UMID — runs every minute and re-checks queued campaigns, also bumping them to Done once all umids are populated.

State columns stay empty until 8x8 calls back

After clicking Send Now, expect umid to populate within seconds. The state column may take longer — it depends on Viber routing through to the recipient device. If a row stays blank for >5 minutes, check journalctl for the webhook handler and that 8x8 has the correct webhook URL on file (https://<your-host>/viber/status).

---

AI Chatbot for public Viber inquiries

When Respond to Viber's Incoming Message using ChatGPT is on, inbound Viber messages get an automatic ChatGPT-generated reply, grounded in a curated FAQ list.

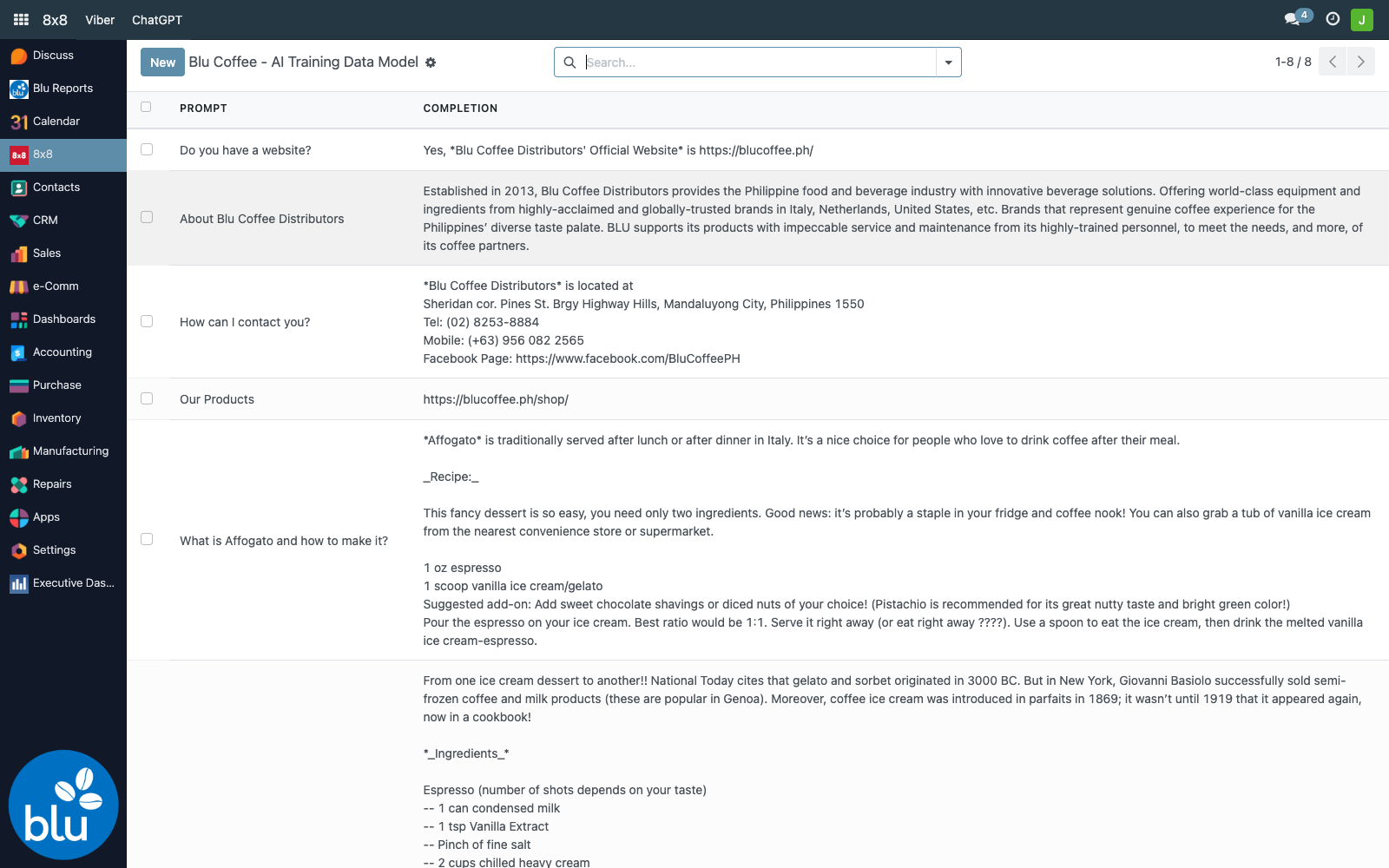

Training data

The FAQ knowledge base lives in 8x8 → ChatGPT → Training Data Model. It's a flat list of Prompt → Completion pairs.

On every inbound Viber message, the entire training table is flattened into the AI system prompt:

(<bot persona, e.g. "You are a coffee expert at Blu Coffee Distributors.">
For frequently asked questions, use these responses:
'<prompt 1>' - '<completion 1>'
'<prompt 2>' - '<completion 2>'
...)

Then ChatGPT is called with messages = [<inbound message>, <system prompt>] and its response is sent straight back via Viber. So:

• Add a row = the bot can immediately answer that question.
• Edit a completion = the bot starts giving the new answer on the very next inbound, no deploy.
• Bot persona lives in Settings → 8x8 → "Respond to user like" — not in the training table.

What flows where

The reply is recorded as a blu.viber.campaign.partners row with is_ai_reply=True, so you can audit every AI answer.

---

AI intent → CRM lead

The Da Vinci Mode switch turns on a second pass on every inbound message: a separate ChatGPT call that just answers "is this message showing interest in our coffee products and services? Yes or No.".

When the answer is YES, the system:

1. Creates a crm.lead with the inbound message text as the lead name and the sender's phone. If the phone already matches an existing partner (partial match on phone column, +63 and spaces normalised), the lead is auto-linked.
2. Looks up users in the "Can handle CRM from Viber and AI?" group — these are the agents you've designated as sales handlers.
3. Sends each agent a Viber message with a "Yes, let me handle it." button, personalised with the customer's name (or phone if unknown) and the original inquiry text.
4. The button's action_url points to /crm/<lead_id>/<user_id> — a public endpoint that:
   • If the lead is still unassigned, claims it for the clicking agent and renders an acknowledgement page.
   • If another agent has already claimed it, shows a "this lead is being handled by <agent>" page.

So the first agent to tap "Yes" wins the lead. The rest get a polite "already taken" page.

Group membership = sales rotation

Whoever you add to Can handle CRM from Viber and AI? gets pinged on every AI-flagged inbound. Use this as a lightweight roster — add/remove users to control who's on rotation, no other config needed.

Lifecycle of an AI-created lead

• Created with user_id = unset (anyone in the group can claim).
• Claimed by the first agent who taps "Yes" — user_id written, ack page rendered.
• Worked normally from this point forward in the regular CRM pipeline. The lead has the original Viber message as its name, so the agent has full context at a glance.

---

SMS (sender accounts)

For SMS work — order confirmations, payment reminders, marketing blasts that need universal reach — Blu Coffee uses the standard Odoo SMS composer extended with a Sender Account selector. The selector tags each message with which Blu team it's from:

Sender Account	Used for
Blu Coffee (default)	General marketing — promos, holiday schedules, brand campaigns
Blu Orders	Order confirmations and dispatch notices
Blu Service	Service-team updates, machine repair pickup notices
Blu Acctg	Statement reminders, payment received confirmations
Blu Intrnal	Internal blasts (staff schedules, announcements)

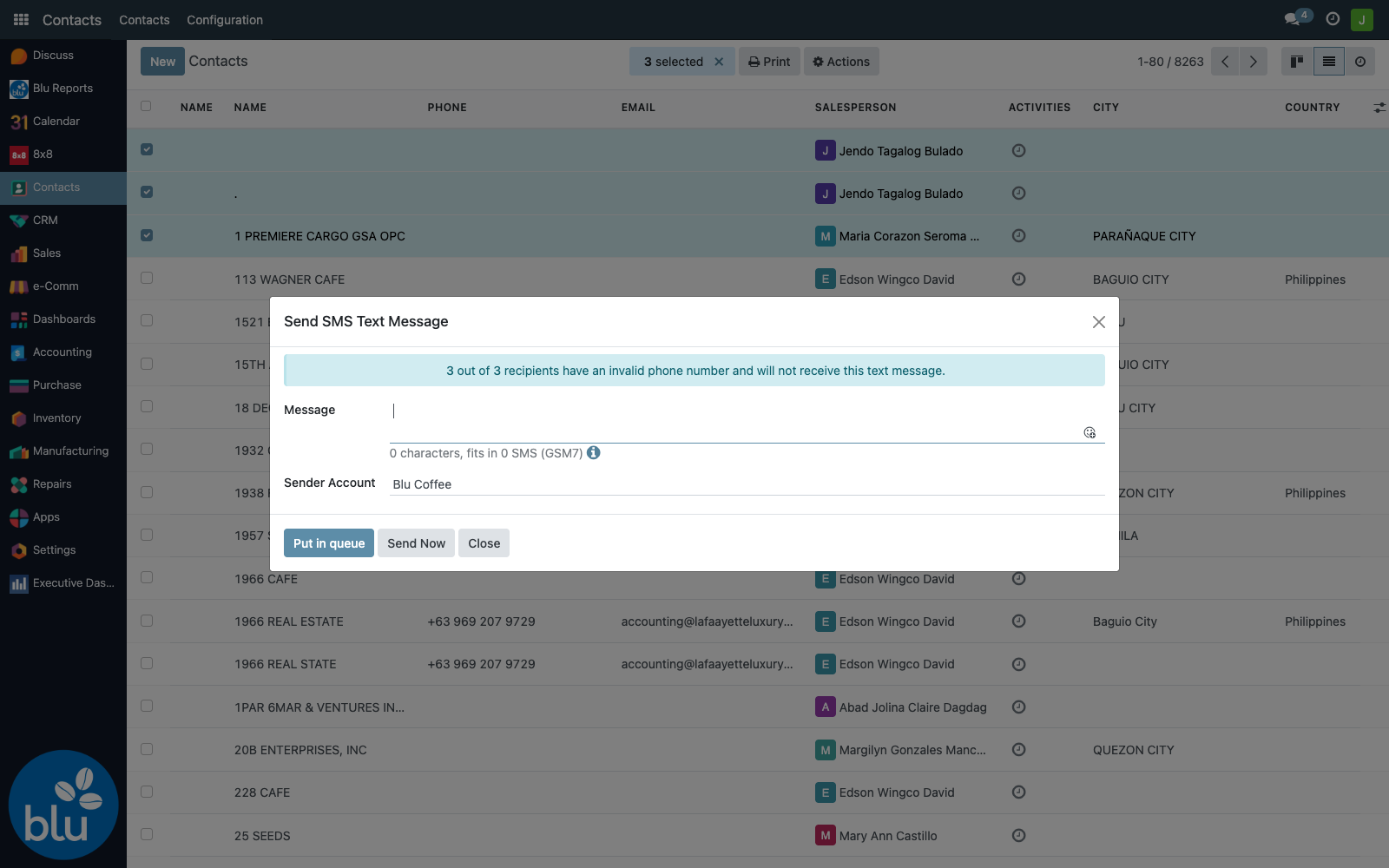

Sending follows the standard Odoo SMS flow — from a single contact's form via Actions → Send SMS Text Message, or in bulk by selecting rows in the contacts list.

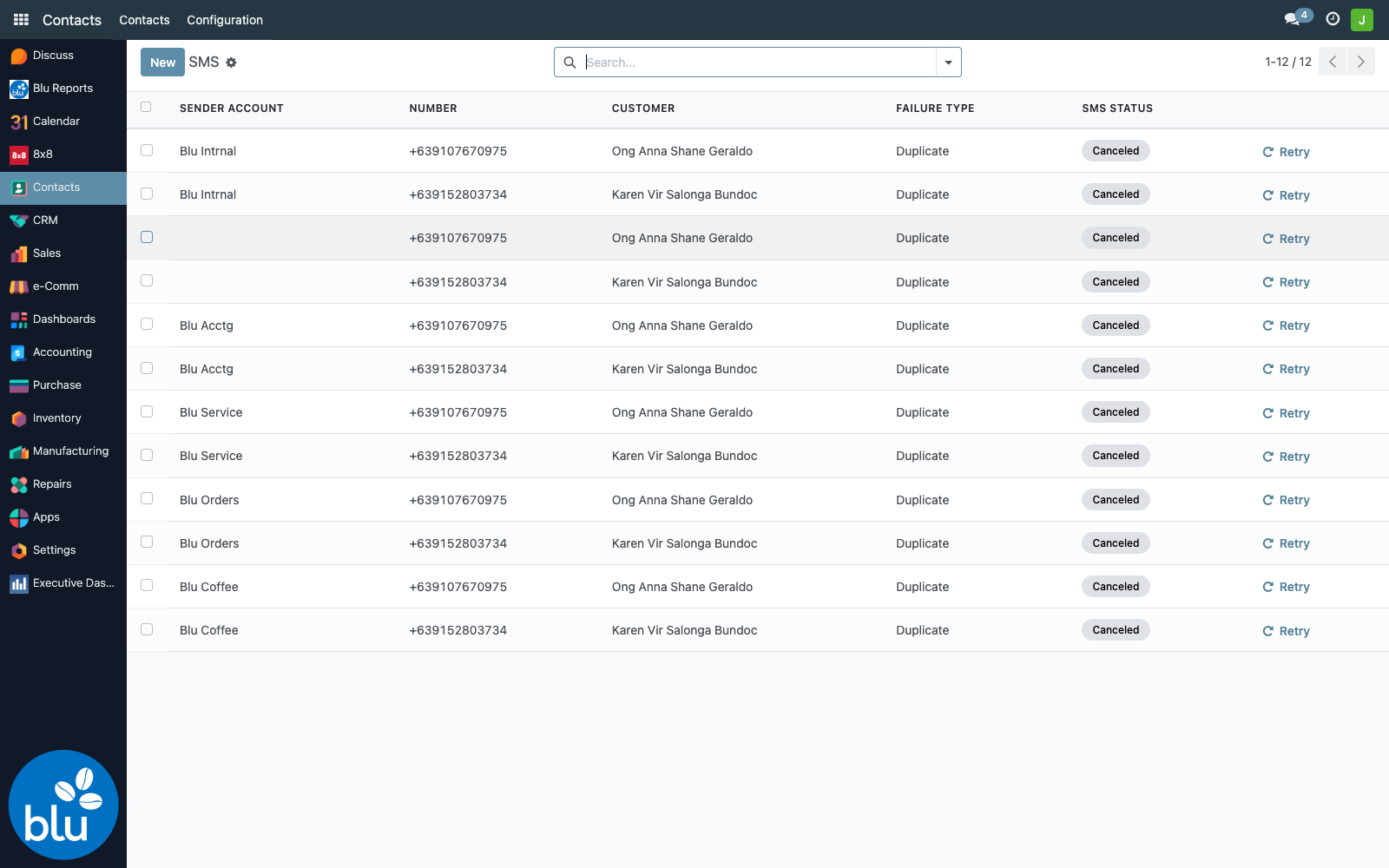

Sent messages are visible under Settings → Technical → Email → SMS Text Messages, with the Sender Account shown as a column so you can audit which team sent what.

---

Reference — code & data map

Concern	File / location
Campaign model + send loop	common/blu_8x8/models/blu_viber_campaign.py
ChatGPT auto-reply on inbound	common/blu_8x8/models/blu_viber_callback.py
Intent detector + lead creation + agent fan-out	common/blu_8x8/models/blu_ai_training_data.py (decipher())
Test-send wizard	common/blu_8x8/wizards/test_viber_send_wiz.py
Partner-by-tag picker	common/blu_8x8/wizards/partner_tags_wiz.py
Bulk phone upload	common/blu_8x8/wizards/upload_phone_numbers_wiz.py
Webhook endpoint + lead-claim endpoint	common/blu_8x8/controllers/controllers.py
Settings page	common/blu_8x8/models/res_config_settings.py, views/res_config_settings_view.xml
Menus + groups + crons	common/blu_8x8/views/blu_8x8_views.xml
AI training data UI	common/blu_8x8/views/blu_ai_views.xml
Ack / "already taken" page templates	common/blu_8x8/reports/blu_crm_ack_template.xml
SMS sender_account field + composer	bc17/blu_8x8/tools/sms_8x8.py, wizard/sms_composer_view.xml

Crons

Cron	Frequency	Purpose
Send Queued Viber Campaigns	every 1 min	Sends any campaign in Queued state
Checking Queued Viber Messages' UMID	every 1 min	Flips a campaign to Done once every recipient has a UMID populated

Webhook URLs

URL	Method	Auth	Purpose
/viber/status	POST	public	8x8 delivery + inbound webhook
/crm/<lead_id>/<user_id>	GET	public	Lead-claim button target (rendered HTML response)

ir.config_parameter keys

Key	Default	Notes
blu_8x8.blu_8x8_api_key	—	8x8 bearer token
blu_8x8.account_id	BluCoffeePH	informational
blu_8x8.blu_8x8_messaging_app_subaccount_id	BluCoffeePH_TwoWayViber_NOTIF	Viber sub-account
blu_8x8.sms_subaccount_id	BluCoffeePH_NOTIF	SMS sub-account
blu_8x8.blu_8x8_sending_interval	5	seconds between Viber sends in a campaign
blu_8x8.blu_chatgpt_api_key	—	OpenAI bearer token
blu_8x8.blu_chatgpt_model	gpt-4o	OpenAI model name
blu_8x8.blu_chatgpt_max_completion_tokens	100	reply length cap
blu_8x8.blu_chatgpt_respond_to_viber_message	False	master AI reply switch
blu_8x8.blu_chatgpt_bot_type	"You are a coffee expert at Blu Coffee Distributors."	system-prompt persona
blu_8x8.blu_chatgpt_davinci_mode	False	intent → CRM-lead switch
